Stroke Counters

Stroke counters are used to count repetitive mechanical actions usually in machinery. This counter can count the number of up-down motions in a stamping machine or back and fourth movements in a printing machine. That is how you know how many parts have been stamped or how many pages have been printed.

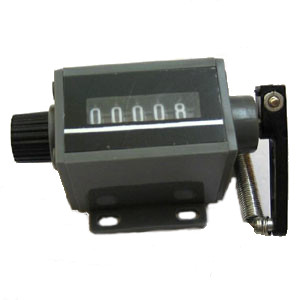

Stroke counter, basic,
5-digit

This modestly priced mechanical stroke counter provides a convenient 5 digit readout of up to 99999. This counter may be mounted on stamping machines, printing machines, packaging machines and any other machine with a turning wheel or moving arm. The spring attached to the mechanical arm prevents excess force on the mechanical arm of the counter.

Easy base mounting and manual reset coupled with the long life design make this counter ideal for use on machine tools, vending machines, and main industrial applications. Lever is returned to original position by an internal spring. Units are available in 5-digit configurations.

Specifications:

DESCRIPTION:
The 1400 series of mechanical counters features small size with high durability and low cost. It has a knob reset that zeros the counter by rotating the knob.
This small counter offers high visibility and durability. The drive shaft is on the right side, making it ideal for many applications.
Makes one count per ratchet drive of 40�-50� reciprocating type.
SPECIFICATIONS:
Counts 5 digits
Figure Size 2.4 mm x 5.0 mm
Shaft Diameter 3 mm
Shaft Position Right side
Direction Counter Clockwise
Max. Speed 600 counts per minute
Weight 33 g

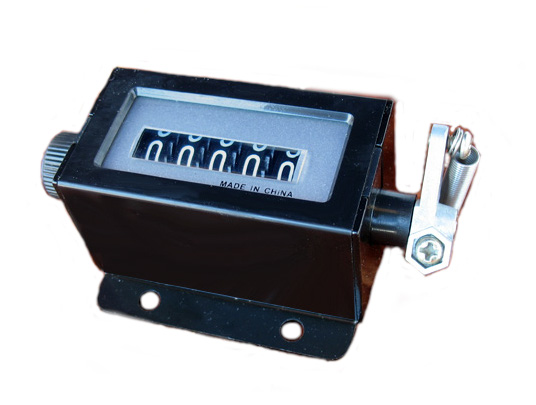

Stroke counter, heavy duty,
5-digit

This high quality 5-digit industrial stroke counter is made to last in harsh environment. The metal frame and base provide a layer of protection and a secure mount to the counter. This counter may be mounted on stamping machines, printing machines, packaging machines and any other machine with a turning wheel or moving arm. The spring attached to the mechanical arm prevents excess force on the mechanical arm of the counter.

Easy base mounting and manual reset coupled with the long life design make this counter ideal for use on machine tools, vending machines, and many other industrial applications. Lever is returned to original position by an internal spring. Large 5 x 3 mm digits makes it easy to read this counter.

DESCRIPTION:

The MSJL1145 mechanical counter features small size with high durability and low cost. It has a reset knob on the left that zeros the counter by rotating the knob.
This counter offers high visibility and durability. The drive shaft is on the right side, making it ideal for many applications.
Makes one count per ratchet drive of 40�-50� reciprocating type.

SPECIFICATIONS:

Counts 5 digits
Figure Size 3 mm x 5.0 mm
Shaft Diameter 3.8mm mm
Shaft Position Right side
Direction Counter Clockwise
Max. Speed 600 counts per minute
Weight 82 grams

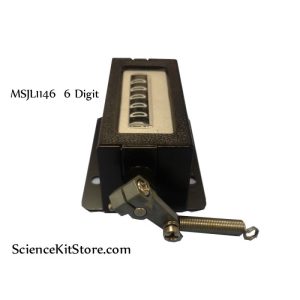

Stroke counter, heavy duty,
6-digit

This modestly priced mechanical stroke counter provides a convenient 5 digit readout of up to 999999. This counter may be mounted on stamping machines, printing machines, packaging machines and any other machine with a turning wheel or moving arm. The spring attached to the mechanical arm prevents excess force on the mechanical arm of the counter.

Easy base mounting and manual reset coupled with the long life design make this counter ideal for use on machine tools, vending machines, and main industrial applications. Lever is returned to original position by an internal spring. Units are available in 5-digit configurations.

DESCRIPTION:

The MSJL1146 mechanical racket counter features small size with high durability and low cost. It has a reset knob on the left that zeros the counter by rotating the knob.
This counter offers high visibility and durability. The drive shaft is on the right side, making it ideal for many applications.
Makes one count per ratchet drive of 40�-50� reciprocating type.

SPECIFICATIONS:

Counts 6 digits
Figure Size 3 mm x 5.0 mm
Shaft Diameter 3.8mm mm
Shaft Position Right side
Direction Counter Clockwise
Max. Speed 600 counts per minute
Weight 86 grams
Overall Size: 93 mm x 46 mm x 33 mm
Base Size: 62 mm x 48 mm
Height: 30 mm
Mounting holes distance: 30 mm (same side), 38 mm (opposite sides)
