## Revolution counters, Rotary counters

## Revolution Counter 4 + 1 Digit

Compact design, heavy duty, industrial grade, high speed, 4 +1 digit revolution counter. It has a metal cover for added protection and secure mounting. Four digits on the left represent the number of full revolutions up 9999. The digit on the right represent a fraction of revolution. Shaft diameter is 4 mm. Item # MSJZ1151

## Basic Revolution Counter

Very basic and brittle 5-digit revolution counter requires proper installation to minimize tension on the counter body. Only for low speed operation and occasional counting. Item# MS102B

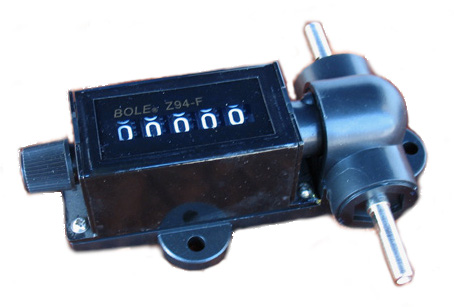

## Revolution Counter, 4 + 1 Digit

MSZ94F is a large, heavy duty, high speed industrial revolution counter that counts 1 for every 3 turns. It comes back to zero after 300,000 revolutions. The shaft is 7 mm in diameter and extends on two sides so that you can use either side depending on your installation. Right angle design. Item # MSZ94F

## Revolution Counter, 4 + 1

MSZ96F is a large, heavy duty, high speed industrial revolution counter that counts 1 for every 3 turns. It comes back to zero after 30,000 revolutions. The shaft is 7 mm in diameter and extends on two sides so that you can use either side depending on your installation. Metal body and frame. Item # MSZ96F

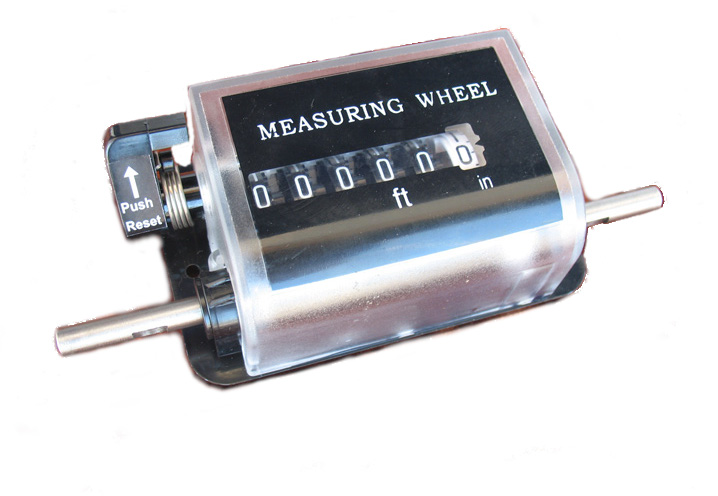

## Revolution Counter, 5 + 1

MSJY316 is a 5-digit large, heavy duty, high speed industrial revolution counter that counts 1 for every complete revolution of the shaft. The additional digit with white background counts the fractions of a complete revolution. It comes back to zero after 100,000 revolutions. The shaft is 7 mm in diameter and extends on two sides so that you can use either side depending on your installation.

Item # MSJY316

## Good to know

Many revolution counters are used to measure the length of materials such as paper, textile, wires, ropes and continuous rolls of metals. For this purpose, they are attached to wheels with known circumference.

For example when attached to a wheel with circumference of one foot, then then every 3 turns is one yard. That is why it is beneficial for revolution counters to count on 1:3 ratio. In this way the wheels will not be too large or too small.

Most of these revolution counters are also available with one or two measuring wheels. The circumferences of such wheels are usually 1/3 meter if you need to measure in metric system.
